Two Advanced Product Photography Techniques Worth Stealing: Flash Painting and Bottle Lighting Secrets
Bottle photography is one of those specialties that looks deceptively simple until you’re standing in front of a glass bottle with a softbox and wondering why every shot looks flat, murky, or weirdly ghostly. I’ve been there. Glass is a nightmare because it doesn’t reflect light the way a matte surface does. It transmits it, bounces it, and picks up every single thing in the room. Getting a bottle to look clean, dimensional, and premium requires a very deliberate approach to every light in the setup.
Watch the full tutorial on YouTube
In this Visual Education tutorial featuring broncolor, photographer and consultant Urs (working alongside commercial photographer Karl Taylor) walks through a multi-light bottle setup and then pivots into something genuinely unusual: flash painting as a solution to a real logistical problem on set. Both techniques are packed with decisions that most tutorials gloss over. Below I’ve broken them down into steps you can actually follow without having access to a broncolor system, because the principles translate to almost any studio flash setup.
Step 1: Build Your Rim Light Through a Secondary Diffusion Layer

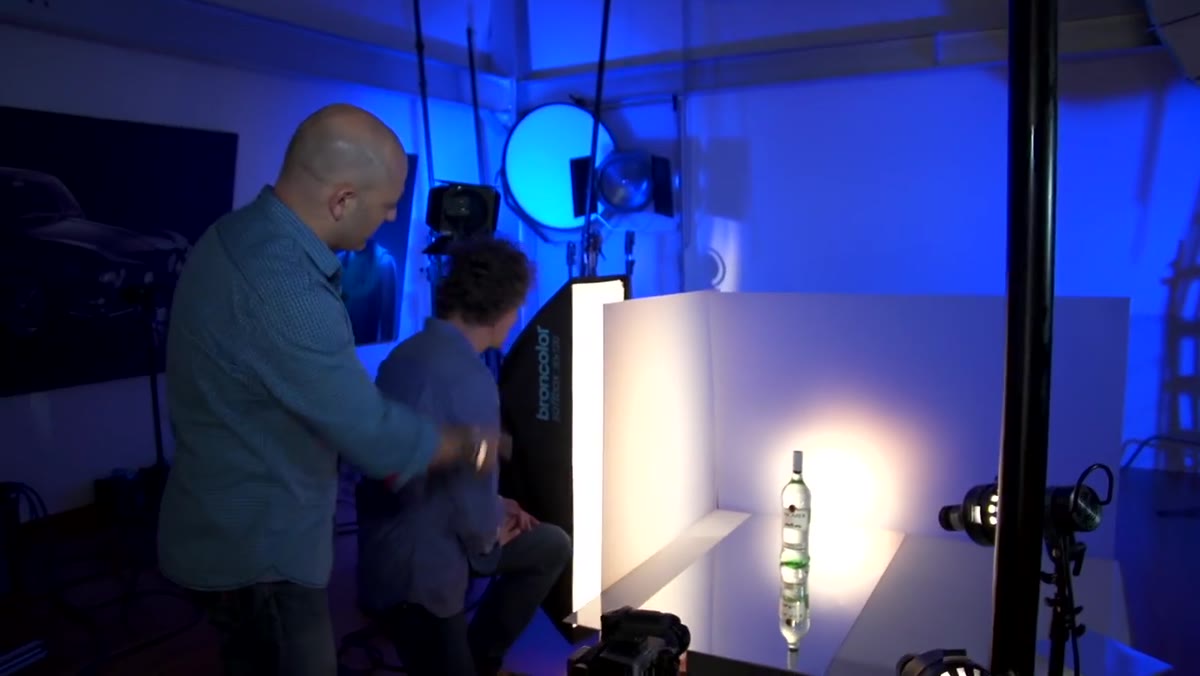

Softbox positioned beside bottle with frosted perspex panel
The first light in the bottle setup is a 30x120cm softbox positioned to the side of the bottle. On its own, that would give you a sharp-edged rim of light along the bottle’s side and neck. That edge can look striking in some contexts, but for most commercial beverage work you want something softer and more feathered. The solution here is a sheet of frosted acrylic (also called frosted perspex or plexiglass) placed between the softbox and the bottle. That second diffusion layer breaks up the hard edge and spreads the light into a smooth, gradual highlight that follows the curve of the bottle naturally. If you don’t have frosted acrylic, a sheet of white ripstop nylon or even a layer of diffusion gel stretched on a frame will get you close.
Step 2: Use Polished Metal Instead of a Mirror for Your Reflective Surface

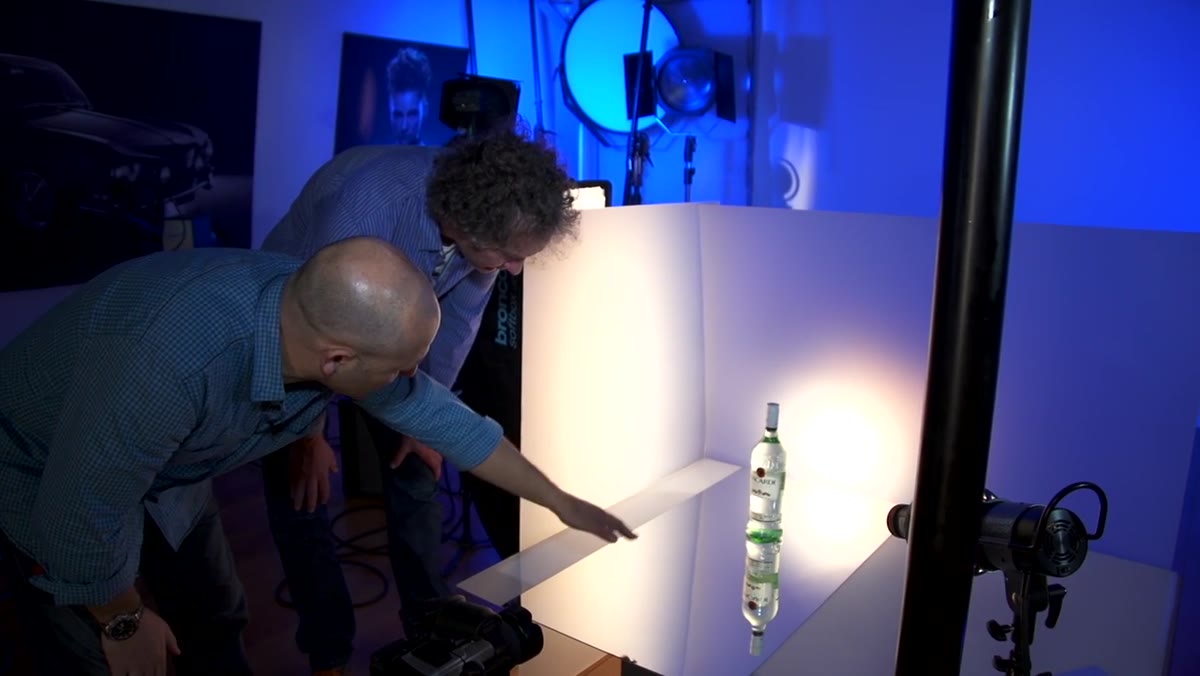

Polished metal sheet beneath bottle showing clean single reflection
The bottle is placed on a sheet of high-gloss polished metal rather than a traditional mirror. This is a detail that makes a real difference. Mirrors produce a double reflection because of the gap between the reflective coating and the glass surface itself. That tiny gap creates a ghost image just offset from the main reflection, which looks unprofessional and is tedious to fix in post. Polished metal gives you a single, clean reflection with no ghosting. It also tends to render slightly warmer than a mirror, which works well for spirits and premium beverage products. If you’re shooting on a budget, high-gloss black acrylic can give you a similar effect with a slightly darker, more dramatic look.
Step 3: Use a Projection Attachment to Isolate Label Illumination

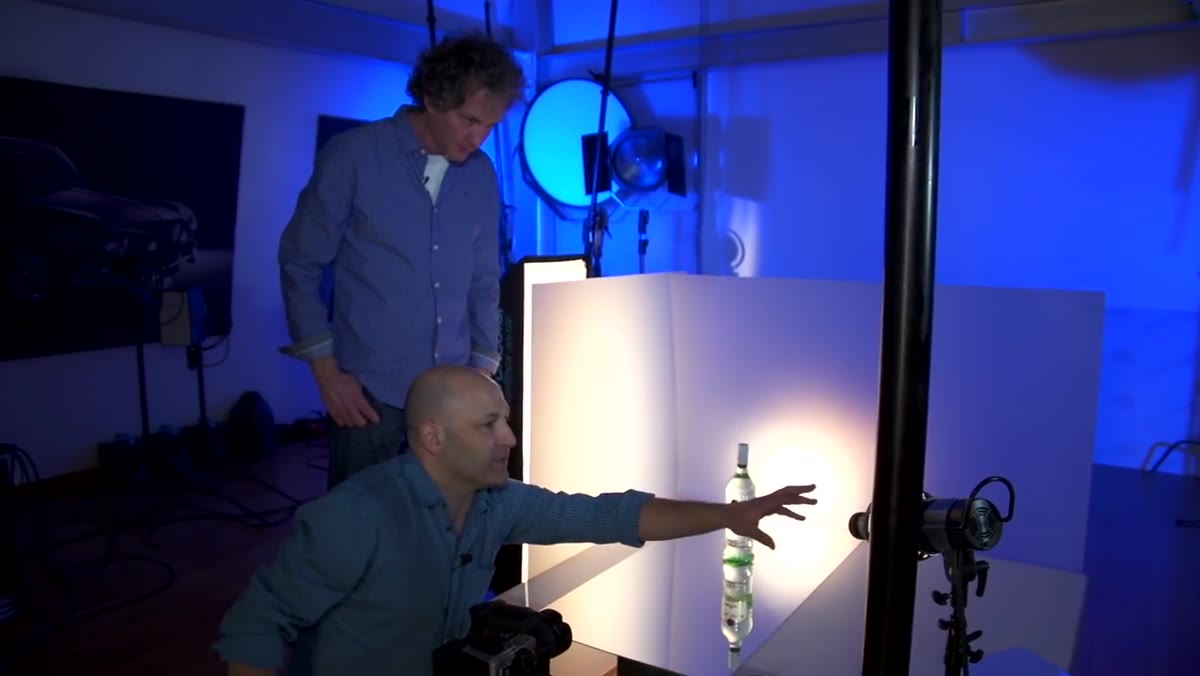

Pico light with projection attachment aimed at bottle label
One of the trickier problems in bottle photography is lighting the label without washing out the glass or blowing out the background. The setup uses small Pico lights fitted with projection attachments to throw a controlled beam directly onto the labels. This keeps the illumination concentrated exactly where the product information lives, without spilling onto the surrounding areas and flattening the overall image. Most speedlights or small monolights can replicate this effect with a snoot or a grid. The key is feathering the edge of that beam so the label is bright but not hot-spotted in the center.
Step 4: Create the Backlight Glow With a Dish, Grid, and Frosted Panel

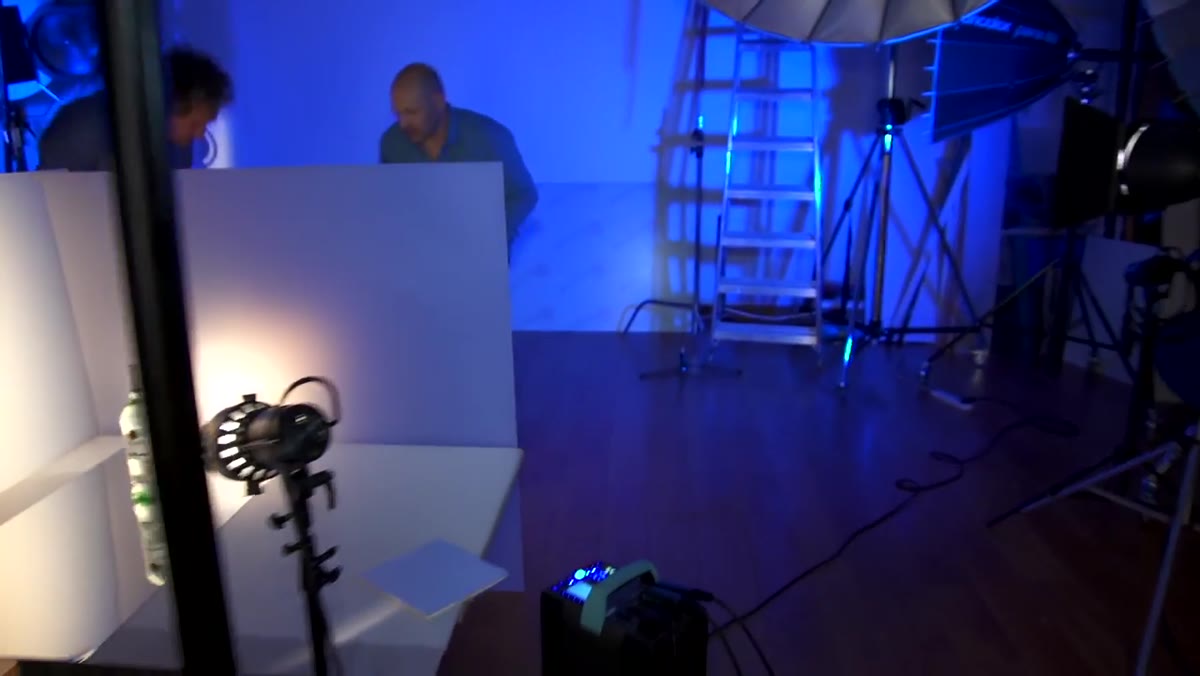

Standard dish with honeycomb grid behind frosted perspex panel
The warm backlight glowing through the bottle comes from a flash head fitted with a standard reflector dish and a honeycomb grid, positioned behind the frosted perspex panel that also acts as a background. The grid narrows the beam enough to create a concentrated circle of light that reads through the frosted surface as a soft, luminous glow rather than a hard spotlight. The photographer adjusts the focus on the flash head (a feature on broncolor Pulso lights) to fine-tune how tight or diffuse that beam is, and also physically moves the light forward and backward to change the size of the glow. If your lights don’t have a focus adjustment, moving the head closer to or further from the diffusion panel achieves a similar result.
Step 5: Use a Silver Card to Fill the Neck Without Adding Another Light

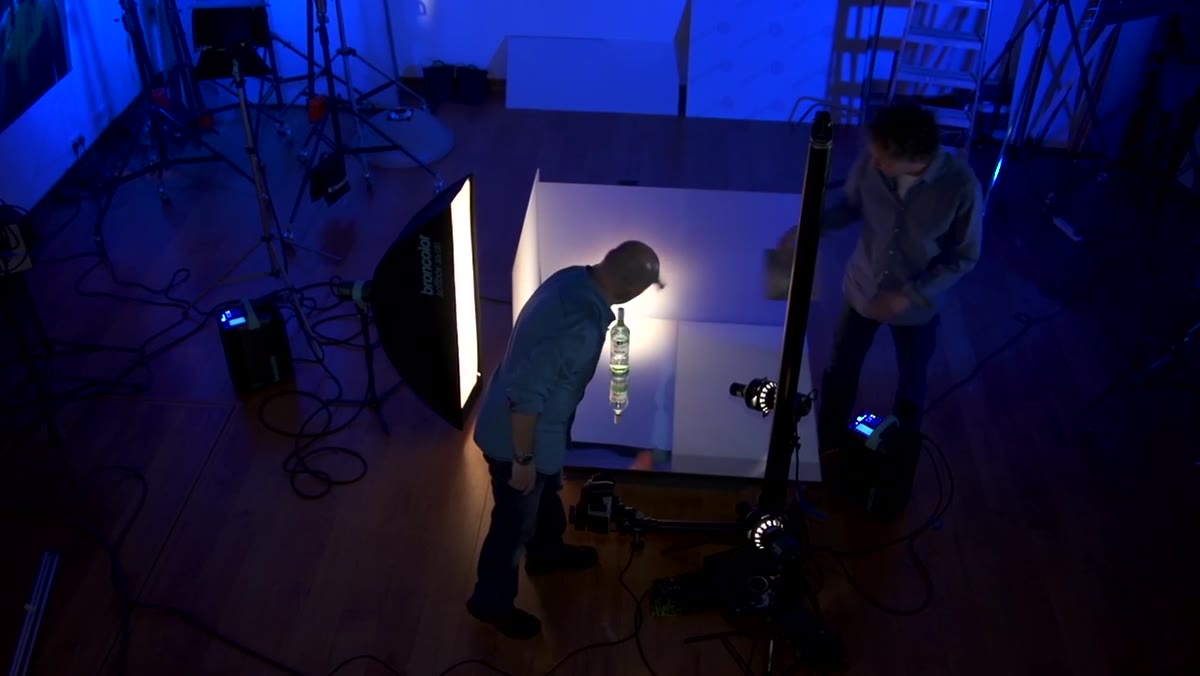

Silver card reflector held near bottle neck for fill
Rather than adding a fourth powered light to fill the shadows on the bottle’s neck, the setup uses a simple piece of silver card held just out of frame, bouncing some of the existing rim light back into that area. It’s a small move but it does real work: the neck is one of the first things your eye travels to on a bottle, and a dark, underexposed neck makes the whole product feel heavy and cheap. Silver card gives you a cooler, harder bounce than white foam core, which suits the clean premium feel of most beverage work. White card would give you a softer, warmer fill if you’re shooting something like a skincare product.
Step 6: Apply the Condensation Mixture Before the Final Shots
Condensation effect visible on bottle surface under studio light
The bottle has a simulated condensation effect applied before shooting. This is a purpose-made mixture that sets solid, so the droplets stay in place and don’t shift between frames or evaporate under the heat of the lights. The specific recipe is kept proprietary in the tutorial (and honestly, there are a few commercial products on the market that do the same job). What matters photographically is that fake condensation needs to be applied with the lighting already dialed in, because the droplets will read completely differently depending on where your rim light is hitting them. Set your lights, do a test frame, then apply the condensation and shoot quickly before anything disturbs the surface.
Step 7: Use Flash Painting for Complex Human-Plus-Product Setups
Subject lying on floor with single flash head being moved between pops
The second half of the tutorial covers flash painting, which is distinct from light painting with a continuous source. With continuous light, subject movement during a long exposure creates blur. With flash painting, you fire a strobe repeatedly over a multi-second exposure, and because each burst is so brief, any slight movement between pops doesn’t register. The technique uses roughly two flashes per second over 15 seconds to produce around 30 individual bursts, each one directed at a different part of the scene. Each area of the frame is only hit by one flash, so you’re essentially building the lighting in layers during a single exposure. For product work where you’re combining a human subject with a product, or lighting a scene with multiple distinct zones, this gives you a level of control that no static multi-light setup can match.
What I’d Do Differently on a Smaller Budget
The broncolor gear in this tutorial is professional-grade, and I’m not going to pretend a Pulso head with a focus adjustment is a standard piece of kit for most photographers. But I’ve replicated the core of this bottle setup using two speedlights and a strip softbox, with a snoot built from black wrap for the label light and a sheet of frosted shower glass from a hardware store standing in for the perspex panel. The polished metal surface is the one element I’d prioritize spending money on because the no-ghosting reflection is genuinely hard to fake with alternatives. You can find offcuts of polished aluminum sheet metal at metal suppliers for far less than a dedicated photography surface costs.
The condensation technique alone is worth practicing before any beverage shoot. Clients always notice it, and it’s one of those small details that immediately signals professional-level work.
The single most important takeaway from this tutorial is that every light in a bottle setup has a specific, non-overlapping job. The rim light shapes the glass. The backlight creates the glow. The projection attachment serves the label. The card fill addresses the neck. When each light has a defined role, the image builds up cleanly. When you start layering lights without intention, glass photography turns into chaos fast.
Watch the full tutorial on YouTube to see both setups demonstrated in full, including the flash painting sequence and the real-time adjustments being made on set.
