The 3-Light E-Commerce Fashion Setup That Shoots Clean White Backgrounds In-Camera
When I first started shooting apparel for small brands, the thing that ate the most time wasn’t the shoot itself. It was post-production. Every single frame needed background cleanup, masking, and color corrections that should have been handled by the lights in the first place. If you’re building a repeatable e-commerce workflow, the goal is simple: get the image right in camera so the retoucher (or you, at midnight) doesn’t have to fix avoidable problems.
In this Visual Education tutorial featuring Karl Taylor and lighting specialist Urs Recher, the two walk through a compact three-light setup designed specifically for full-length fashion e-commerce on a pure white background. Watch the full tutorial on YouTube before or after reading this breakdown. The setup uses broncolor gear, but the logic behind every decision applies to any studio strobe system. This is the kind of configuration you can bolt down in a corner of a small studio or warehouse and leave permanently. Same results, every model, every shoot day.
What I love about this approach is that it solves for consistency, not just quality. When a brand needs 80 looks shot in a day, you cannot afford to be problem-solving your lights between every model change. This setup eliminates that.
Step 1: Choose Your Floor Material Strategically

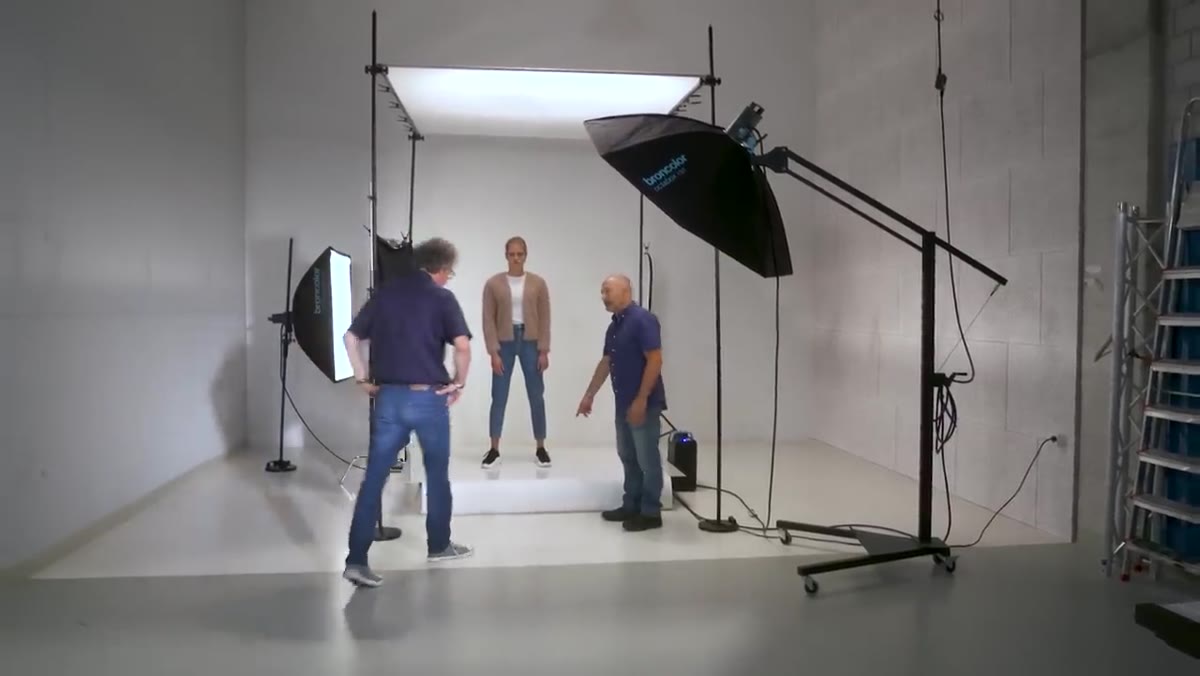

White acrylic floor panel positioned beneath the model
For a full-length shot, your floor is part of the frame, and that creates a specific problem. White seamless paper alone requires a massive amount of light to read as pure white, and all that extra light bounces back up into your subject, creating a flat, washed-out quality. The solution here is a sheet of white acrylic placed over the paper. The acrylic reflects the background light efficiently without needing to be blasted, which means you get a clean white floor without the unwanted fill creeping up from below. It’s a small material swap with a significant effect on overall light quality.
If you’re on a budget, white foam board or a painted white plywood panel can approximate this, though acrylic gives you a cleaner, more consistent surface. The point is to separate the floor from the background paper so you can control each independently.
Step 2: Position Your Key Light to Cover Full-Length Fall-Off

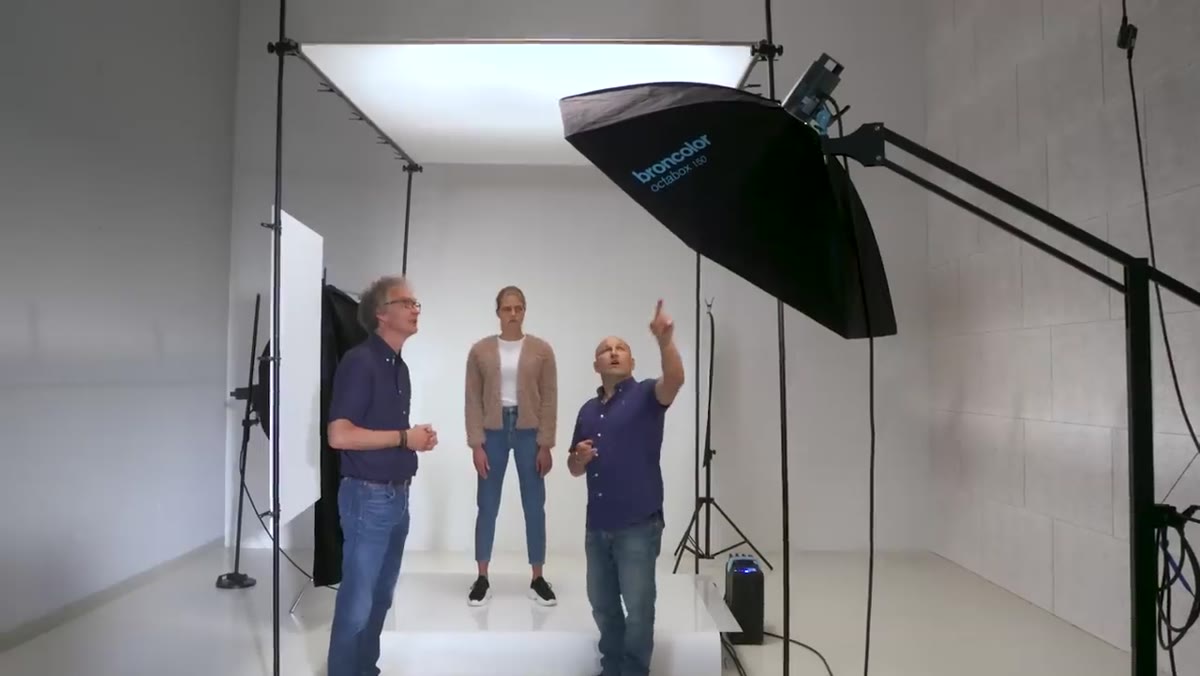

Octabox key light angled downward toward the model’s midsection
The main light here is a large octabox, and the placement is not where most beginners put it. Instead of aiming the light directly at the model’s face, it’s angled downward so the center of the light source points roughly at the model’s midsection. This is the fall-off fix. When you aim a light source at someone’s face for a full-body shot, the distance from the light to their head is significantly shorter than the distance to their feet, so the exposure drops off toward the bottom of the frame. By tilting the key light down and letting the upper edge of the octabox handle the face, you get much more even coverage from head to toe. Test this on your next full-length shoot and the difference will be immediately visible on your histogram.
Step 3: Add a Top Light for Dimension, Not as a Second Key

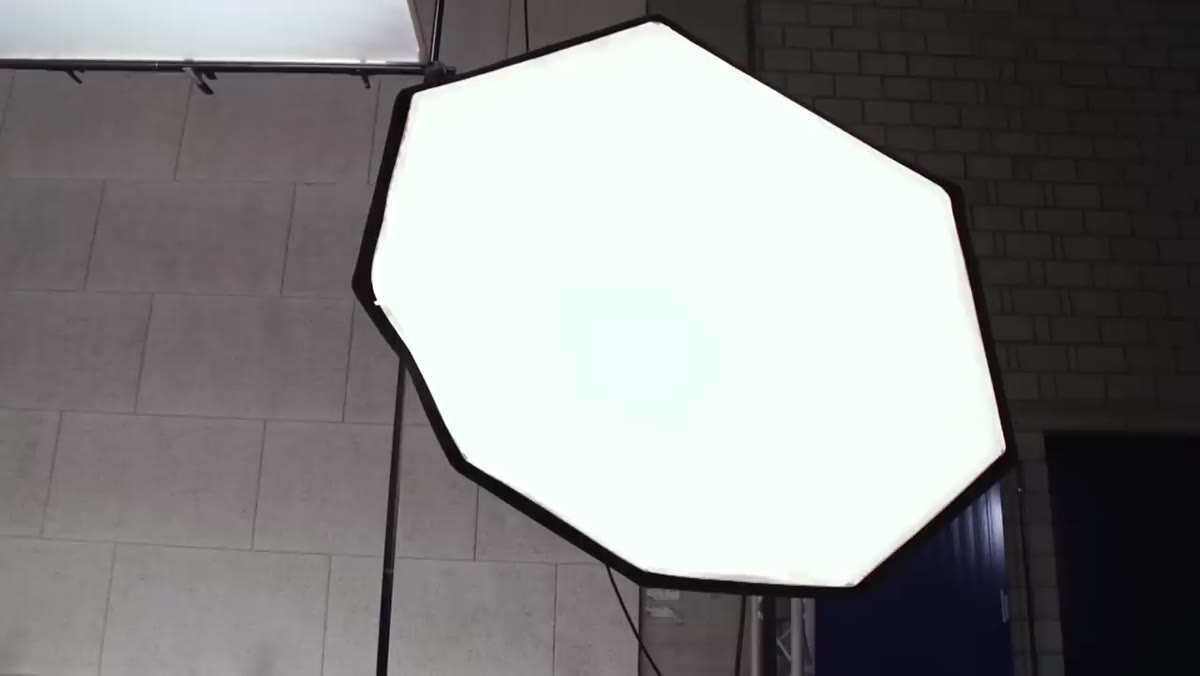

Second light positioned high, firing through diffusion screen
The second light in this setup is not trying to be a main light. It’s firing through a diffusion screen from a high position to add a subtle sense of direction to the light coming down on the subject. Think of it as a shaping tool rather than an illumination tool. Without it, the octabox alone can produce a slightly flat, even light that looks fine but lacks depth. This overhead source adds just enough directional quality to give the image that clean, editorial feel that separates a professional catalog image from a snapshot.
The key word in Recher’s explanation is “direction.” You’re not lifting the exposure here. You’re adding a gentle sense that light has a source and a logic.
Step 4: Light the Background Separately, and Angle It Away From the Subject

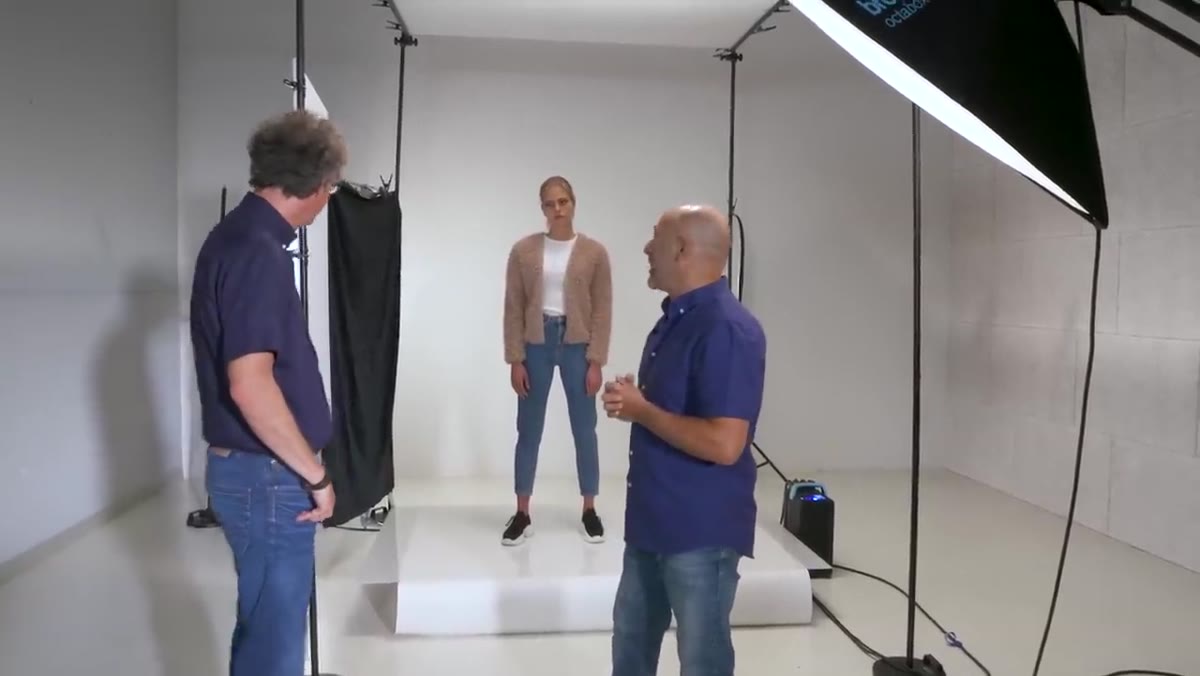

120cm softbox angled toward the subject, black curtain blocking spill
This is the step most people get backwards. A common mistake is to point the background light directly at the paper, which blows out one side and creates an uneven gradient. Instead, a 120cm softbox is angled so it faces toward the model, not the background. The light wraps across the background surface gradually, evening it out. A black curtain sits between the background light and the model to prevent any of that light from spilling onto her and killing the separation you’ve worked to build.
The result is a background that reads as clean, even white across the entire frame without affecting the subject exposure at all. This is the separation that makes cutout work in Photoshop unnecessary. The background is already white. You’re done before you open Lightroom.
Step 5: Use a Silver Reflector to Correct Any Remaining Fall-Off

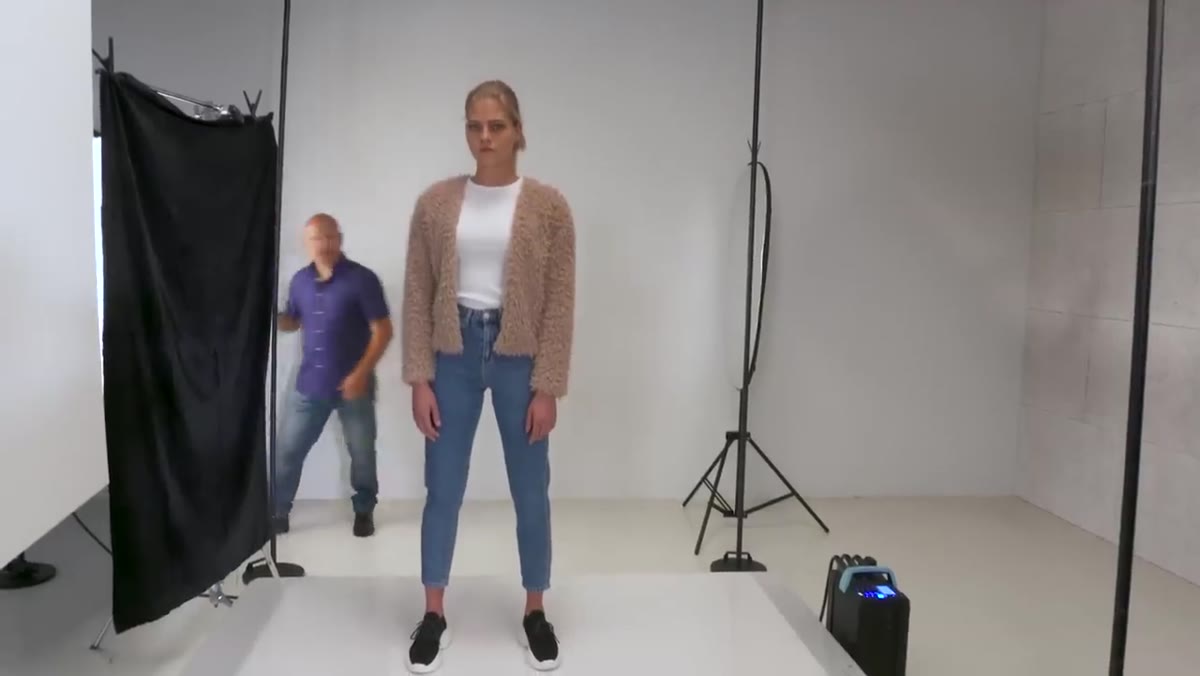

Silver reflector positioned to the right side of the set
Even with a well-placed background light, one side of the frame often falls slightly darker than the other. A simple silver reflector positioned on the opposite side from the background light bounces just enough fill back into that area to balance the white across the full width of the frame. No additional power pack needed. No extra cable. Just a reflector doing what reflectors do best: redirecting existing light into a shadow area for free.
Check your background exposure with a light meter or a gray card placed against the paper. You want the background reading about one stop above your subject exposure to ensure it clips to white in camera.
Step 6: Use High-Speed Continuous Flash to Capture Movement
Camera and pack settings showing continuous flash capability
The setup uses a broncolor Scoro pack that can fire up to 50 flashes per second, paired with a Nikon at continuous high-speed shooting. At a flash duration of 1/2000 of a second, there’s no motion blur even on a full-length shot where the model’s limbs are moving. This means the photographer can run the camera in burst mode through a range of poses and pull the selects later, rather than calling each shot individually. For high-volume catalog work, this changes the math on how many looks you can get through in a day.
You don’t need a Scoro pack to apply this logic. Any pack with a reasonably short flash duration and consistent recycle time will give you the freedom to shoot loosely and edit tightly.
What I’d Add From My Own Experience
This setup is built for efficiency, and that’s exactly right. But one thing the tutorial doesn’t address is how sensitive this whole system is to ambient light contamination. If you’re running this in a space with large windows or overhead fluorescents, even a small amount of ambient light will muddy your white background and shift your color balance in ways that vary by time of day. I learned this the hard way shooting in my studio with afternoon sun leaking under the roller door. Shoot with ambient blocked out entirely, or meter your ambient against your strobe exposure and make sure the strobe is at least four stops brighter. That ratio keeps ambient from registering.
Also worth noting: if you’re shooting for a brand that sells across multiple platforms, pure white (RGB 255/255/255) may actually get rejected by some marketplace background checkers for being too bright. Aim for a near-white that still holds detail, around 245-250 on the luminosity scale, and you’ll have more flexibility in delivery.
A three-light setup sounds simple, but every single positioning decision in this tutorial is deliberate. The reason it works isn’t the gear. It’s understanding what each light is being asked to do and keeping those jobs separate. Get the logic right and you can replicate it with any strobe system at any price point.
Watch the full tutorial on YouTube to see Karl Taylor and Urs Recher walk through the live shoot with the model and discuss the technical decisions in real time.
