How to Light a Clear Bottle for E-Commerce: Breaking Down Karl Taylor's Reflective Surface Setup
Clear bottles are the thing that separates photographers who understand light from photographers who think they do. I learned that the hard way shooting a skincare line early in my career — the bottles looked like cloudy plastic tubes in every frame, no matter how many lights I threw at them. The problem wasn’t the quantity of light. It was the quality, the placement, and an almost counterintuitive layering approach that I didn’t figure out until I started studying how commercial photographers actually build these setups piece by piece.
In this Visual Education tutorial, Karl Taylor walks through exactly how he shot a premium clear bottle — condensation and all — using a handful of light sources working together with very specific jobs assigned to each one. Watch the full tutorial on YouTube before or after reading this breakdown. What I’m going to do here is unpack each layer of the setup so you can reconstruct it in your own space, even if your gear list looks nothing like his.
The reason this tutorial matters to me practically is that clear and translucent bottles show up constantly in beauty, spirits, wellness, and food e-commerce. If you can’t light them, you lose clients. If you can light them well, suddenly you’re the photographer who can make a $15 body wash look like it belongs on a Sephora landing page.
Step 1: Start With a Diffused Side Light, Not a Raw Softbox
Softbox positioned beside bottle with frosted perspex sheet
The main light in this setup is a large softbox (Karl uses a 30x120cm strip) positioned to the side of the bottle. Here’s the part most people skip: he places a sheet of frosted perspex between the softbox and the bottle. The softbox alone produces a light edge that’s too sharp and defined for glass or clear plastic. You see it as a hard stripe in the reflection rather than a smooth gradient that wraps around the bottle’s surface.
The frosted perspex softens that edge further and creates a feathered falloff along the full height of the bottle, from shoulder to base. If you don’t have perspex, a sheet of diffusion material from a photography supply store placed on a stand between your softbox and the product does the same job. The goal is a highlight on the bottle that gradients from bright to nothing, not one that has a visible edge you can trace with your finger.
Step 2: Use Polished Metal as Your Shooting Surface

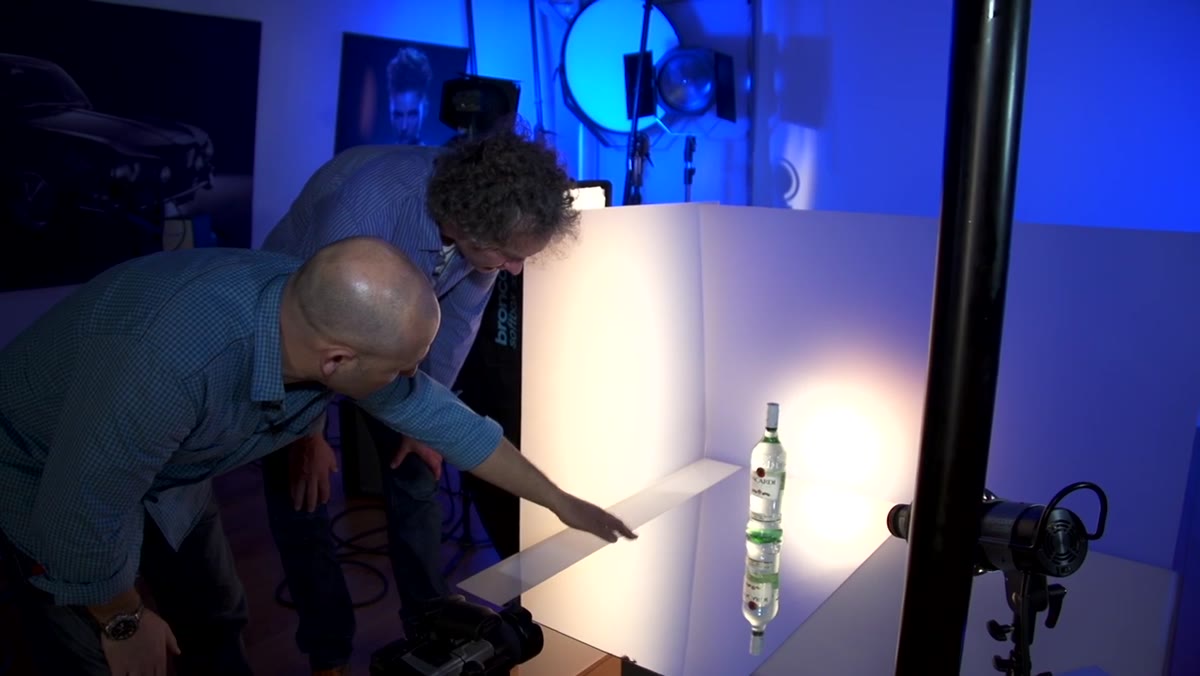

Reflective metal surface showing clean bottle reflection
The surface the bottle sits on is not a mirror, even though it looks like one in the final shot. Karl specifically calls out that he uses a sheet of high-gloss polished metal instead. The reason is practical: traditional mirrors have two surfaces of glass, and that creates a faint doubled reflection. Polished metal gives you a single clean reflection, which reads as more intentional and graphic in the final image.
For small e-commerce setups, acrylic mirror sheet (sometimes sold as “mirror board”) is a good substitute and much cheaper than sourcing polished metal. Matte black acrylic gives a completely different look if you want a dark, moody reflection instead of a bright mirror-style one. Choose your surface based on the brand tone you’re trying to match.
Step 3: Add a Background Light With a Grid for the Glow Effect

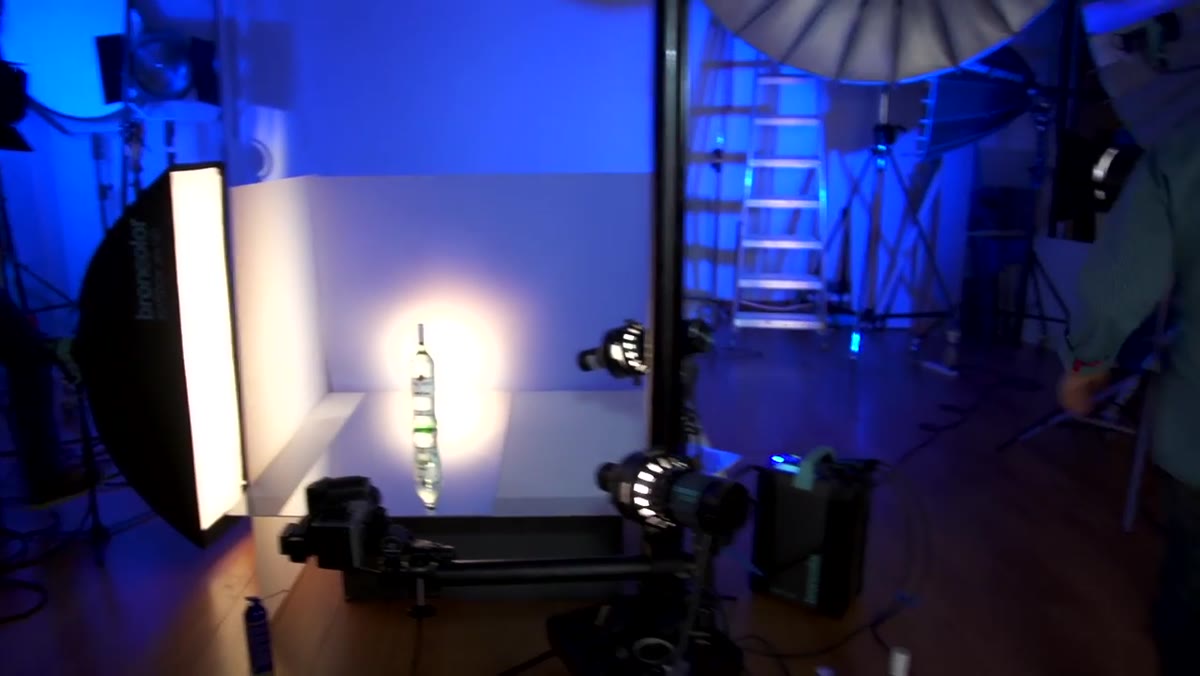

Light behind frosted perspex creating backlit glow through bottle
Behind the bottle, Karl positions a light fitted with a standard dish and a honeycomb grid. This light fires through the frosted perspex panel, creating that warm, radial glow you see behind the bottle and through it. The grid keeps the light from spreading too wide and washing out the rest of the frame. The frosted perspex turns what would be a harsh circle of light into a soft, even bloom.
The focus adjustment on his light lets him control how tight or feathered that beam is. If your lights don’t have a focus mechanism, try moving the light closer or farther from the perspex panel and test how the glow changes. Closer typically gives a tighter, brighter circle. Farther back spreads it more evenly. Shoot tethered or review on a large screen so you can actually see the difference in the background gradient.
Step 4: Illuminate Labels Separately With a Projection Light

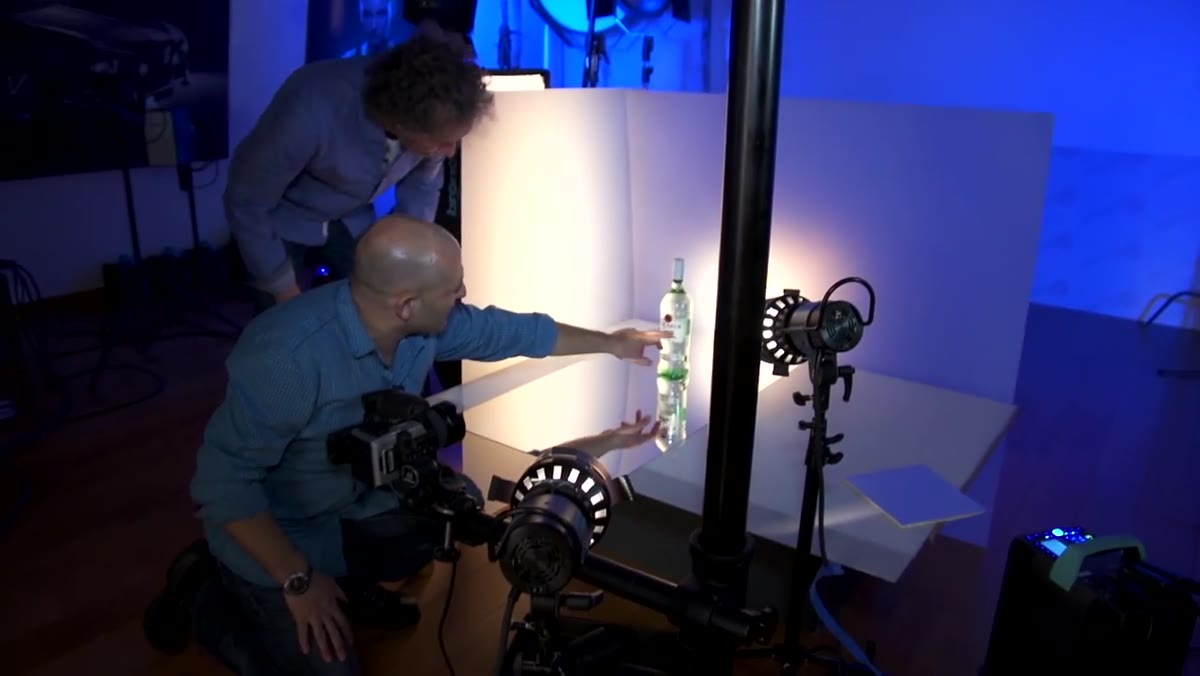

Small Pico projection light aimed at bottle label
Karl uses small projection-attachment lights (Pico lights) specifically to light the label. This is a detail that most tutorials gloss over, but it’s critical for e-commerce work where the label has to be readable and visually appealing. The backlight and side light that give the bottle its beautiful glow don’t necessarily hit the label the way a buyer needs to see it.
A dedicated label light lets you control the brightness and angle of just that area without affecting the rest of the setup. You don’t need specialized projection lights to approximate this. A small snoot on a speedlight or even a gridded LED panel positioned close to the front of the bottle can isolate the label nicely. The key is that this light has a narrow, concentrated beam so it doesn’t spill onto the background or create reflections you don’t want.
Step 5: Use a Reflector Card to Fill Shadows on the Neck
Silver card held near bottle neck bouncing light onto top of bottle
The last element in this setup is the simplest: a piece of silver card held near the neck of the bottle to bounce light back into any shadows forming at the top. In the video, Karl hands the card to his assistant and asks them to position it until the neck and cap area show the highlight detail he wants. It’s not a sophisticated tool, but it’s solving a real problem. The bottle narrows at the top and catches light differently than the body.
For solo shooters, you can tape a piece of card or foam board to a small clamp arm and position it yourself before locking it in place. The silver side of a foam board from any craft store reflects enough light to do this job. If you want a softer fill, flip it to the white side. Test both and see which one gives you the level of detail you need in the cap and neck without creating a distracting bright spot.
Step 6: Apply the Condensation Effect Last
Close-up of bottle surface showing applied condensation droplets
Karl mentions a custom condensation mixture applied to the bottle to create that cold, freshly-chilled look. He keeps the exact formula close to his chest, but the concept is straightforward: it’s a mixture that creates droplets that set hard, don’t move, and don’t evaporate under studio lights. Real water droplets shift, drip, and dry out between shots. A fixed condensation formula means your droplets look identical in frame 1 and frame 47.
There are commercial products marketed for this purpose, and some photographers build their own formulas using glycerin, hair spray, or other materials. Whatever you use, apply it before the lights go on and test your setup with a stand-in bottle first. Nothing is worse than perfecting your lighting only to realize the condensation dried unevenly or is running down the label.
What I’d Do Differently for a Smaller Budget Setup
Karl’s tutorial assumes you have access to studio strobes, specialized projection lights, and polished metal sheeting. Most small business photographers and Etsy sellers don’t. Here’s what I’ve found translates this same layered approach into a more accessible rig:
Replace the side softbox plus perspex combination with a large window covered in a single layer of white tissue paper or tracing paper. The tissue does what the perspex does. Use a sheet of acrylic mirror board from a hardware store as your surface. For the background glow, position a simple LED panel behind a piece of frosted shower door panel or even a sheet of white drafting paper. The physics of the light is identical, even if the tools aren’t the same brand.
The fundamental structure of this setup is side light for the bottle form, back light for the glow and translucency, a dedicated label light, and a reflector for the top. Once you internalize those four jobs, you can build this shot with whatever gear is in your bag.
The single most important lesson from this tutorial is that clear bottles require multiple light sources, each with a specific assignment. One light can’t do all of it. When I started treating each part of a bottle as its own lighting problem to solve, the quality of my shots changed immediately. The glow, the highlight, the label, and the surface reflection are four separate decisions that happen to coexist in one frame.
Watch the full tutorial on YouTube to see the full setup in action and catch the live shooting portion where Karl and his colleague fine-tune the reflector position in real time. Seeing that adjustment happen gives you a feel for how small movements make significant changes in reflective product work.
